Manipulating image files

ImageMagick (linux, Mac)

Installation

Go to the ImageMagic installation page for detailed instructions for different operating systems.

Utilities

ImageMagick has a list of utilities that can be used for different purposes. The following table presents a summary of those. Then, I will show some examples for each of these utilities. These examples will help you better understand how to use them.

When specifying a color in any ImageMagick command, you can use the name of any recognized color, the RGB value, or the Hex value.

When specifying a shape to draw on an image, you can use any of the valid shapes.

Utility Use Syntax Links
magick This command now replaces convert, which is deprecated. Change image format, blur, crop, draw on, flip, merge, resample, and more. Writes output on a new file. magick [input-options] input-file(s) [output-options] output-file Man page, Documentation
identify Obtain information about an image. identify [options] input-file Man page, Documentation
mogrify Resize an image, blur, crop, draw on, flip, merge, resample, and more. Re-writes original file. mogrify [options] input-file Man page, Documentation
composite Overlaps one image over another. composite [ options ... ] change-file base-file [ mask-file ] output-image Man page, Documentation
montage Combines different images, adds border, frame, and much more. montage input-file[s] [options] output-file Man page, Documentation
compare Compare two images. compare input-file input-file [options] output-file Man page, Documentation
stream Writes the pixel components of an img a row at a time into different storage formats. compare input-file input-file [options] output-file Man page, Documentation
display Displays an image or image sequence. display [options] input-file Man page, Documentation
animate Animates an image sequence. animate [options] input-file Man page, Documentation
import Saves any visible window as an img file. Captures a single window, the entire screen, or any rectangular portion of the screen. import [options] output-file Man page, Documentation
conjure Interprets and executes scripts written in the Magick Scripting Language (MSL). conjure [options] script.msl Man page, Documentation

Examples

In the following examples we will use this image:

original

magick

Syntax: magick [input-option] input-file [output-option] output-file

Changing the color of pixels:

In the following example we are replacing all pixels that have a distance of at most 50%, 60% and 100% from 255 in the blue value of their RGB:

magick grandma.jpg -fuzz 50% -fill "red" -opaque "blue" grandma_50.jpg
magick grandma.jpg -fuzz 60% -fill "red" -opaque "blue" grandma_60.jpg
magick grandma.jpg -fuzz 100% -fill "red" -opaque "blue" grandma_100.jpg

Meaning of used options:

  1. fuzz: Distance from 255 in those pixels to be matched.
    • 50% means any pixel with blue value between 127.5 (50% of 255) and 255.
    • 60% means any pixel with blue value between 102 and 255. 60% of 255 is 153, and 255-153=102. Any pixel with blue value within this range will be at most 60% away from being 100% blue.
    • 100% means any pixel with blue value at most 100% away from being 100% blue, this includes all pixels in the image.
  2. opaque: Color to be replaced. See the list of recognized colors.

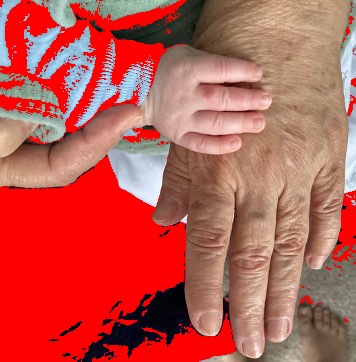

Output with 50% of fuzz:

50% fuzz

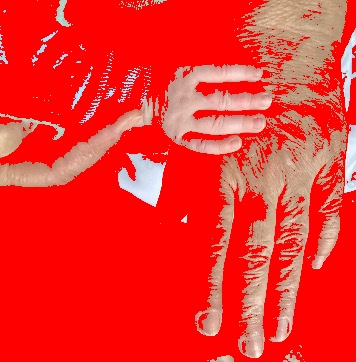

Output with 60% of fuzz:

50% fuzz

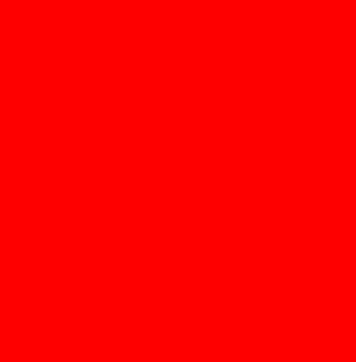

Output with 100% of fuzz:

50% fuzz

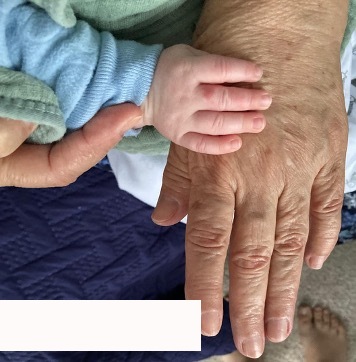

You can also change the color of pixels in a specific area:

magick grandma.jpg -fill "rgb(255,250,250)" -draw "rectangle 0,300 200,350" grandma_rect.jpg

Meaning of used options:

  1. fill: Color to fill the form. See the list of recognized colors.
  2. draw: Shape to draw. See list of valid shapes and their parameters.

Output:

rectangle

Add text over the rectangle drawn on the image above:

magick grandma_rect.jpg -font helvetica -fill black -pointsize 15 -draw "text 0,315 'Grandma\nand\nbaby'" grandma_rect_txt.png

Meaning of used options:

  1. font: Font for the text. To see the list of all available fonts type magick -list font.
  2. fill: Color to fill the form, in this case the text. See the list of recognized colors.
  3. pointsize: Text size.
  4. draw: Shape to draw. See list of valid shapes and their parameters.

Output:

text

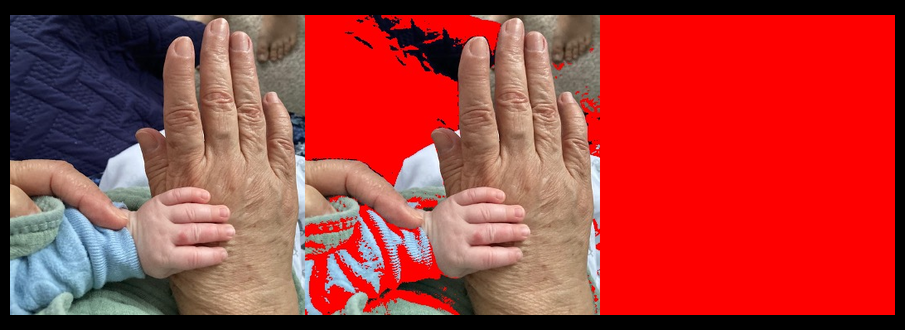

Concatenate images horizontally:

In the following example I will concatenate some images (grandma.jpg grandma_50.jpg grandma_100.jpg) horizontally, add a border, and flip the image along the horizontal axis.

magick grandma.jpg grandma_50.jpg grandma_100.jpg +append -resize x300 -bordercolor black -border 10x15 -flip horizontal.png

Meaning of used options:

  1. resize: Force the output file to have a height of 300 pixels. If the input images have different heights, then this parameter is recommended. Otherwise, the output will have the same height as the input files if this parameter is not used.
  2. bordercolor: Color of the border. See the list of recognized colors.
  3. border: Add a border with the specified thickness. In this case we are adding a border with a thickness of 10 pixels on the left and right and 15 pixels on the top and bottom.
  4. flip: I'm flipping the output image along the horizontal axis. To flip the image along the vertical axis, use -flop. Make sure to insert the flip flag after +append to apply the flip to the output instead of any of the input files. See example below on how to apply flip or flop to the input instead of output files.

Output:

horizontal

Concatenate images vertically:

In the following example I will concatenate some images (grandma.jpg and grandma_50.jpg) horizontally. Before the concatenation, I will flip the first input file along the vertical axis and transform the color space to Gray.

magick grandma.jpg -colorspace Gray -flop grandma_50.jpg -append -resize 300x vertical.png

Meaning of used options:

  1. colorspace: Color space to apply to the input image. It will apply to any input image specified before the flag, in this case grandma.jpg. If we wanted the whole output file to be on Gray scale, we would add the flag at the end of all input images. Available color spaces: sRGB, RGB, Gray, HSV, HSB, HSL, LAB, LCH, CMYK, XYZ, YUV, YCbCr, AdobeRGB, plus others.
  2. flop: I'm flipping the input image (grandma.jpg) along the vertical axis. To flip the image along the horizontal axis, use flip.
  3. resize: Force the output file to have a width of 300 pixels. If the input images have different widths, then this parameter is recommended. Otherwise, the output will have the same width as the input files if this parameter is not used.

Output:

vertical

Detect edges:

In the following example I will detect edges in the image generated in the example above using two methods: the standard edge detection with the -edge flag, and the Canny Edge detection with smoothing using -canny. -canny is more sophisticated and allows for modifying the radius, sigma and threshold for filtering out edges.

magick vertical.png -edge 2 edges.png
magick vertical.png -canny 0x1+10%+30% edges2.png

Meaning of used options:

  1. -edge 2: Apply an edge of radius 2. To make the edges thicker, increment the value of 2, or to make them thinner, give a value of 1.
  2. -canny 0x1+10%+30%: Apply Canny Edge Detection with smoothing. The arguments here set the radius to 0 (auto-determined) and sigma to 1. Increase sigma for more smoothing. 10% and 30% are the lower and upper percentage thresholds for edge detection. Play around with these values to filter out weaker edges and highlight more important ones. Increasing the upper percentage will remove more edges.

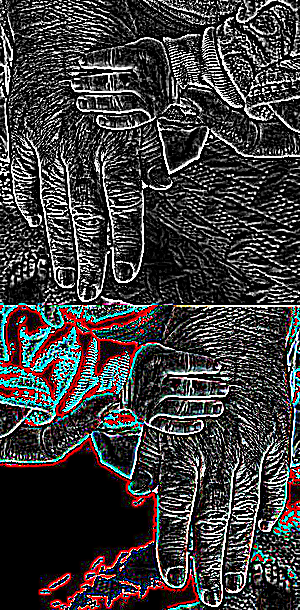

Output using -edge:

edge

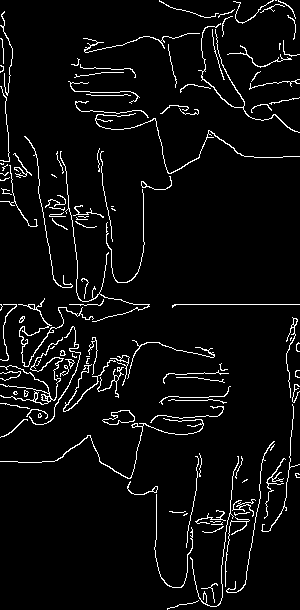

Output using -canny:

canny

identify

mogrify

composite

montage

compare

stream

display

animate

import

conjure

ImageMagick shapes

Shape Syntax Notes
Point point x,y Specified by an ordered pair of integer coordinates.
Line line x0,y0 x1,y1 Requires a start and end point.
Rectangle rectangle x0,y0 x1,y1 Specified by the pair of points at the upper left and lower right corners.
Round rectangle roundRectangle x0,y0, x1,y1 wc,hc Takes same corner points as rectangle, followed by the width and height of the rounded corners to be removed.
Arc arc x0,y0 x1,y1 a0,a1 Requires two corners used to create a rectangle, followed by the start and end angles of the arc in degrees.
Ellipse ellipse x0,y0 rx,ry a0,a1 Requires the center point, the horizontal and vertical radius, and the start and end angles in degrees.
Circle circle x0,y0 x1,y1 Give the center and any point on the perimeter. Can make a disk (filled) or circle (unfilled).
Polyline polyline x0,y0 ... xn,yn Requires three or more points to define their perimeters. This is simply a polygon in which the final point is not stroked to the start point.
Polygon polygon x0,y0 ... xn,yn Requires three or more points to define their perimeters.
Bezier bezier x0,y0 ... xn,yn Creates a spline curve and requires three or points to define its shape.
Path path specification represents an outline of an object, defined in terms of moveto (set a new current point), lineto (draw a straight line), curveto (draw a Bezier curve), arc (elliptical or circular arc) and closepath (close the current shape by drawing a line to the last moveto) elements.
Image image operator x0,y0 w,h filename Used to composite an image with another image.
Text text x,y text_to_display Add text in coordinates x,y of image.

ImageMagick color list

Color name RGB Hex
snow1 rgb(255,250,250) #FFFAFA
snow2 rgb(238,233,233) #EEE9E9
RosyBrown1 rgb(255,193,193) #FFC1C1
RosyBrown2 rgb(238,180,180) #EEB4B4
snow3 rgb(205,201,201) #CDC9C9
LightCoral rgb(240,128,128) #F08080
IndianRed1 rgb(255,106,106) #FF6A6A
RosyBrown3 rgb(205,155,155) #CD9B9B
IndianRed2 rgb(238,99,99) #EE6363
RosyBrown rgb(188,143,143) #BC8F8F
brown1 rgb(255,64,64) #FF4040
firebrick1 rgb(255,48,48) #FF3030
brown2 rgb(238,59,59) #EE3B3B
IndianRed rgb(205,92,92) #CD5C5C
IndianRed3 rgb(205,85,85) #CD5555
firebrick2 rgb(238,44,44) #EE2C2C
snow4 rgb(139,137,137) #8B8989
brown3 rgb(205,51,51) #CD3333
red rgb(255,0,0) #FF0000
red1 rgb(255,0,0) #FF0000
RosyBrown4 rgb(139,105,105) #8B6969
firebrick3 rgb(205,38,38) #CD2626
red2 rgb(238,0,0) #EE0000
firebrick rgb(178,34,34) #B22222
brown rgb(165,42,42) #A52A2A
red3 rgb(205,0,0) #CD0000
IndianRed4 rgb(139,58,58) #8B3A3A
brown4 rgb(139,35,35) #8B2323
firebrick4 rgb(139,26,26) #8B1A1A
DarkRed rgb(139,0,0) #8B0000
red4 rgb(139,0,0) #8B0000
maroon(SVGcompliance) rgb(128,0,0) #800000
LightPink1 rgb(255,174,185) #FFAEB9
LightPink3 rgb(205,140,149) #CD8C95
LightPink4 rgb(139,95,101) #8B5F65
LightPink2 rgb(238,162,173) #EEA2AD
LightPink rgb(255,182,193) #FFB6C1
pink rgb(255,192,203) #FFC0CB
crimson rgb(220,20,60) #DC143C
pink1 rgb(255,181,197) #FFB5C5
pink2 rgb(238,169,184) #EEA9B8
pink3 rgb(205,145,158) #CD919E
pink4 rgb(139,99,108) #8B636C
PaleVioletRed4 rgb(139,71,93) #8B475D
PaleVioletRed rgb(219,112,147) #DB7093
PaleVioletRed2 rgb(238,121,159) #EE799F
PaleVioletRed1 rgb(255,130,171) #FF82AB
PaleVioletRed3 rgb(205,104,137) #CD6889
LavenderBlush rgb(255,240,245) #FFF0F5
LavenderBlush1 rgb(255,240,245) #FFF0F5
LavenderBlush3 rgb(205,193,197) #CDC1C5
LavenderBlush2 rgb(238,224,229) #EEE0E5
LavenderBlush4 rgb(139,131,134) #8B8386
maroon(X11compliance) rgb(176,48,96) #B03060
HotPink3 rgb(205,96,144) #CD6090
VioletRed3 rgb(205,50,120) #CD3278
VioletRed1 rgb(255,62,150) #FF3E96
VioletRed2 rgb(238,58,140) #EE3A8C
VioletRed4 rgb(139,34,82) #8B2252
HotPink2 rgb(238,106,167) #EE6AA7
HotPink1 rgb(255,110,180) #FF6EB4
HotPink4 rgb(139,58,98) #8B3A62
HotPink rgb(255,105,180) #FF69B4
DeepPink rgb(255,20,147) #FF1493
DeepPink1 rgb(255,20,147) #FF1493
DeepPink2 rgb(238,18,137) #EE1289
DeepPink3 rgb(205,16,118) #CD1076
DeepPink4 rgb(139,10,80) #8B0A50
maroon1 rgb(255,52,179) #FF34B3
maroon2 rgb(238,48,167) #EE30A7
maroon3 rgb(205,41,144) #CD2990
maroon4 rgb(139,28,98) #8B1C62
MediumVioletRed rgb(199,21,133) #C71585
VioletRed rgb(208,32,144) #D02090
orchid2 rgb(238,122,233) #EE7AE9
orchid rgb(218,112,214) #DA70D6
orchid1 rgb(255,131,250) #FF83FA
orchid3 rgb(205,105,201) #CD69C9
orchid4 rgb(139,71,137) #8B4789
thistle1 rgb(255,225,255) #FFE1FF
thistle2 rgb(238,210,238) #EED2EE
plum1 rgb(255,187,255) #FFBBFF
plum2 rgb(238,174,238) #EEAEEE
thistle rgb(216,191,216) #D8BFD8
thistle3 rgb(205,181,205) #CDB5CD
plum rgb(221,160,221) #DDA0DD
violet rgb(238,130,238) #EE82EE
plum3 rgb(205,150,205) #CD96CD
thistle4 rgb(139,123,139) #8B7B8B
fuchsia rgb(255,0,255) #FF00FF
magenta rgb(255,0,255) #FF00FF
magenta1 rgb(255,0,255) #FF00FF
plum4 rgb(139,102,139) #8B668B
magenta2 rgb(238,0,238) #EE00EE
magenta3 rgb(205,0,205) #CD00CD
DarkMagenta rgb(139,0,139) #8B008B
magenta4 rgb(139,0,139) #8B008B
purple(SVGcompliance) rgb(128,0,128) #800080
MediumOrchid rgb(186,85,211) #BA55D3
MediumOrchid1 rgb(224,102,255) #E066FF
MediumOrchid2 rgb(209,95,238) #D15FEE
MediumOrchid3 rgb(180,82,205) #B452CD
MediumOrchid4 rgb(122,55,139) #7A378B
DarkViolet rgb(148,0,211) #9400D3
DarkOrchid rgb(153,50,204) #9932CC
DarkOrchid1 rgb(191,62,255) #BF3EFF
DarkOrchid3 rgb(154,50,205) #9A32CD
DarkOrchid2 rgb(178,58,238) #B23AEE
DarkOrchid4 rgb(104,34,139) #68228B
purple(X11compliance) rgb(160,32,240) #A020F0
indigo rgb(75,0,130) #4B0082
BlueViolet rgb(138,43,226) #8A2BE2
purple2 rgb(145,44,238) #912CEE
purple3 rgb(125,38,205) #7D26CD
purple4 rgb(85,26,139) #551A8B
purple1 rgb(155,48,255) #9B30FF
MediumPurple rgb(147,112,219) #9370DB
MediumPurple1 rgb(171,130,255) #AB82FF
MediumPurple2 rgb(159,121,238) #9F79EE
MediumPurple3 rgb(137,104,205) #8968CD
MediumPurple4 rgb(93,71,139) #5D478B
DarkSlateBlue rgb(72,61,139) #483D8B
LightSlateBlue rgb(132,112,255) #8470FF
MediumSlateBlue rgb(123,104,238) #7B68EE
SlateBlue rgb(106,90,205) #6A5ACD
SlateBlue1 rgb(131,111,255) #836FFF
SlateBlue2 rgb(122,103,238) #7A67EE
SlateBlue3 rgb(105,89,205) #6959CD
SlateBlue4 rgb(71,60,139) #473C8B
GhostWhite rgb(248,248,255) #F8F8FF
lavender rgb(230,230,250) #E6E6FA
blue rgb(0,0,255) #0000FF
blue1 rgb(0,0,255) #0000FF
blue2 rgb(0,0,238) #0000EE
blue3 rgb(0,0,205) #0000CD
MediumBlue rgb(0,0,205) #0000CD
blue4 rgb(0,0,139) #00008B
DarkBlue rgb(0,0,139) #00008B
MidnightBlue rgb(25,25,112) #191970
navy rgb(0,0,128) #000080
NavyBlue rgb(0,0,128) #000080
RoyalBlue rgb(65,105,225) #4169E1
RoyalBlue1 rgb(72,118,255) #4876FF
RoyalBlue2 rgb(67,110,238) #436EEE
RoyalBlue3 rgb(58,95,205) #3A5FCD
RoyalBlue4 rgb(39,64,139) #27408B
CornflowerBlue rgb(100,149,237) #6495ED
LightSteelBlue rgb(176,196,222) #B0C4DE
LightSteelBlue1 rgb(202,225,255) #CAE1FF
LightSteelBlue2 rgb(188,210,238) #BCD2EE
LightSteelBlue3 rgb(162,181,205) #A2B5CD
LightSteelBlue4 rgb(110,123,139) #6E7B8B
SlateGray4 rgb(108,123,139) #6C7B8B
SlateGray1 rgb(198,226,255) #C6E2FF
SlateGray2 rgb(185,211,238) #B9D3EE
SlateGray3 rgb(159,182,205) #9FB6CD
LightSlateGray rgb(119,136,153) #778899
LightSlateGrey rgb(119,136,153) #778899
SlateGray rgb(112,128,144) #708090
SlateGrey rgb(112,128,144) #708090
DodgerBlue rgb(30,144,255) #1E90FF
DodgerBlue1 rgb(30,144,255) #1E90FF
DodgerBlue2 rgb(28,134,238) #1C86EE
DodgerBlue4 rgb(16,78,139) #104E8B
DodgerBlue3 rgb(24,116,205) #1874CD
AliceBlue rgb(240,248,255) #F0F8FF
SteelBlue4 rgb(54,100,139) #36648B
SteelBlue rgb(70,130,180) #4682B4
SteelBlue1 rgb(99,184,255) #63B8FF
SteelBlue2 rgb(92,172,238) #5CACEE
SteelBlue3 rgb(79,148,205) #4F94CD
SkyBlue4 rgb(74,112,139) #4A708B
SkyBlue1 rgb(135,206,255) #87CEFF
SkyBlue2 rgb(126,192,238) #7EC0EE
SkyBlue3 rgb(108,166,205) #6CA6CD
LightSkyBlue rgb(135,206,250) #87CEFA
LightSkyBlue4 rgb(96,123,139) #607B8B
LightSkyBlue1 rgb(176,226,255) #B0E2FF
LightSkyBlue2 rgb(164,211,238) #A4D3EE
LightSkyBlue3 rgb(141,182,205) #8DB6CD
SkyBlue rgb(135,206,235) #87CEEB
LightBlue3 rgb(154,192,205) #9AC0CD
DeepSkyBlue rgb(0,191,255) #00BFFF
DeepSkyBlue1 rgb(0,191,255) #00BFFF
DeepSkyBlue2 rgb(0,178,238) #00B2EE
DeepSkyBlue4 rgb(0,104,139) #00688B
DeepSkyBlue3 rgb(0,154,205) #009ACD
LightBlue1 rgb(191,239,255) #BFEFFF
LightBlue2 rgb(178,223,238) #B2DFEE
LightBlue rgb(173,216,230) #ADD8E6
LightBlue4 rgb(104,131,139) #68838B
PowderBlue rgb(176,224,230) #B0E0E6
CadetBlue1 rgb(152,245,255) #98F5FF
CadetBlue2 rgb(142,229,238) #8EE5EE
CadetBlue3 rgb(122,197,205) #7AC5CD
CadetBlue4 rgb(83,134,139) #53868B
turquoise1 rgb(0,245,255) #00F5FF
turquoise2 rgb(0,229,238) #00E5EE
turquoise3 rgb(0,197,205) #00C5CD
turquoise4 rgb(0,134,139) #00868B
cadetblue rgb(95,158,160) #5F9EA0
CadetBlue rgb(95,158,160) #5F9EA0
DarkTurquoise rgb(0,206,209) #00CED1
azure rgb(240,255,255) #F0FFFF
azure1 rgb(240,255,255) #F0FFFF
LightCyan rgb(224,255,255) #E0FFFF
LightCyan1 rgb(224,255,255) #E0FFFF
azure2 rgb(224,238,238) #E0EEEE
LightCyan2 rgb(209,238,238) #D1EEEE
PaleTurquoise1 rgb(187,255,255) #BBFFFF
PaleTurquoise rgb(175,238,238) #AFEEEE
PaleTurquoise2 rgb(174,238,238) #AEEEEE
DarkSlateGray1 rgb(151,255,255) #97FFFF
azure3 rgb(193,205,205) #C1CDCD
LightCyan3 rgb(180,205,205) #B4CDCD
DarkSlateGray2 rgb(141,238,238) #8DEEEE
PaleTurquoise3 rgb(150,205,205) #96CDCD
DarkSlateGray3 rgb(121,205,205) #79CDCD
azure4 rgb(131,139,139) #838B8B
LightCyan4 rgb(122,139,139) #7A8B8B
aqua rgb(0,255,255) #00FFFF
cyan rgb(0,255,255) #00FFFF
cyan1 rgb(0,255,255) #00FFFF
PaleTurquoise4 rgb(102,139,139) #668B8B
cyan2 rgb(0,238,238) #00EEEE
DarkSlateGray4 rgb(82,139,139) #528B8B
cyan3 rgb(0,205,205) #00CDCD
cyan4 rgb(0,139,139) #008B8B
DarkCyan rgb(0,139,139) #008B8B
teal rgb(0,128,128) #008080
DarkSlateGray rgb(47,79,79) #2F4F4F
DarkSlateGrey rgb(47,79,79) #2F4F4F
MediumTurquoise rgb(72,209,204) #48D1CC
LightSeaGreen rgb(32,178,170) #20B2AA
turquoise rgb(64,224,208) #40E0D0
aquamarine4 rgb(69,139,116) #458B74
aquamarine rgb(127,255,212) #7FFFD4
aquamarine1 rgb(127,255,212) #7FFFD4
aquamarine2 rgb(118,238,198) #76EEC6
aquamarine3 rgb(102,205,170) #66CDAA
MediumAquamarine rgb(102,205,170) #66CDAA
MediumSpringGreen rgb(0,250,154) #00FA9A
MintCream rgb(245,255,250) #F5FFFA
SpringGreen rgb(0,255,127) #00FF7F
SpringGreen1 rgb(0,255,127) #00FF7F
SpringGreen2 rgb(0,238,118) #00EE76
SpringGreen3 rgb(0,205,102) #00CD66
SpringGreen4 rgb(0,139,69) #008B45
MediumSeaGreen rgb(60,179,113) #3CB371
SeaGreen rgb(46,139,87) #2E8B57
SeaGreen3 rgb(67,205,128) #43CD80
SeaGreen1 rgb(84,255,159) #54FF9F
SeaGreen4 rgb(46,139,87) #2E8B57
SeaGreen2 rgb(78,238,148) #4EEE94
MediumForestGreen rgb(50,129,75) #32814B
honeydew rgb(240,255,240) #F0FFF0
honeydew1 rgb(240,255,240) #F0FFF0
honeydew2 rgb(224,238,224) #E0EEE0
DarkSeaGreen1 rgb(193,255,193) #C1FFC1
DarkSeaGreen2 rgb(180,238,180) #B4EEB4
PaleGreen1 rgb(154,255,154) #9AFF9A
PaleGreen rgb(152,251,152) #98FB98
honeydew3 rgb(193,205,193) #C1CDC1
LightGreen rgb(144,238,144) #90EE90
PaleGreen2 rgb(144,238,144) #90EE90
DarkSeaGreen3 rgb(155,205,155) #9BCD9B
DarkSeaGreen rgb(143,188,143) #8FBC8F
PaleGreen3 rgb(124,205,124) #7CCD7C
honeydew4 rgb(131,139,131) #838B83
green1 rgb(0,255,0) #00FF00
lime rgb(0,255,0) #00FF00
LimeGreen rgb(50,205,50) #32CD32
DarkSeaGreen4 rgb(105,139,105) #698B69
green2 rgb(0,238,0) #00EE00
PaleGreen4 rgb(84,139,84) #548B54
green3 rgb(0,205,0) #00CD00
ForestGreen rgb(34,139,34) #228B22
green4 rgb(0,139,0) #008B00
green rgb(0,128,0) #008000
DarkGreen rgb(0,100,0) #006400
LawnGreen rgb(124,252,0) #7CFC00
chartreuse rgb(127,255,0) #7FFF00
chartreuse1 rgb(127,255,0) #7FFF00
chartreuse2 rgb(118,238,0) #76EE00
chartreuse3 rgb(102,205,0) #66CD00
chartreuse4 rgb(69,139,0) #458B00
GreenYellow rgb(173,255,47) #ADFF2F
DarkOliveGreen3 rgb(162,205,90) #A2CD5A
DarkOliveGreen1 rgb(202,255,112) #CAFF70
DarkOliveGreen2 rgb(188,238,104) #BCEE68
DarkOliveGreen4 rgb(110,139,61) #6E8B3D
DarkOliveGreen rgb(85,107,47) #556B2F
OliveDrab rgb(107,142,35) #6B8E23
OliveDrab1 rgb(192,255,62) #C0FF3E
OliveDrab2 rgb(179,238,58) #B3EE3A
OliveDrab3 rgb(154,205,50) #9ACD32
YellowGreen rgb(154,205,50) #9ACD32
OliveDrab4 rgb(105,139,34) #698B22
ivory rgb(255,255,240) #FFFFF0
ivory1 rgb(255,255,240) #FFFFF0
LightYellow rgb(255,255,224) #FFFFE0
LightYellow1 rgb(255,255,224) #FFFFE0
beige rgb(245,245,220) #F5F5DC
ivory2 rgb(238,238,224) #EEEEE0
LightGoldenrodYellow rgb(250,250,210) #FAFAD2
LightYellow2 rgb(238,238,209) #EEEED1
ivory3 rgb(205,205,193) #CDCDC1
LightYellow3 rgb(205,205,180) #CDCDB4
ivory4 rgb(139,139,131) #8B8B83
LightYellow4 rgb(139,139,122) #8B8B7A
yellow rgb(255,255,0) #FFFF00
yellow1 rgb(255,255,0) #FFFF00
yellow2 rgb(238,238,0) #EEEE00
yellow3 rgb(205,205,0) #CDCD00
yellow4 rgb(139,139,0) #8B8B00
olive rgb(128,128,0) #808000
DarkKhaki rgb(189,183,107) #BDB76B
khaki2 rgb(238,230,133) #EEE685
LemonChiffon4 rgb(139,137,112) #8B8970
khaki1 rgb(255,246,143) #FFF68F
khaki3 rgb(205,198,115) #CDC673
khaki4 rgb(139,134,78) #8B864E
PaleGoldenrod rgb(238,232,170) #EEE8AA
LemonChiffon rgb(255,250,205) #FFFACD
LemonChiffon1 rgb(255,250,205) #FFFACD
khaki rgb(240,230,140) #F0E68C
LemonChiffon3 rgb(205,201,165) #CDC9A5
LemonChiffon2 rgb(238,233,191) #EEE9BF
MediumGoldenRod rgb(209,193,102) #D1C166
cornsilk4 rgb(139,136,120) #8B8878
gold rgb(255,215,0) #FFD700
gold1 rgb(255,215,0) #FFD700
gold2 rgb(238,201,0) #EEC900
gold3 rgb(205,173,0) #CDAD00
gold4 rgb(139,117,0) #8B7500
LightGoldenrod rgb(238,221,130) #EEDD82
LightGoldenrod4 rgb(139,129,76) #8B814C
LightGoldenrod1 rgb(255,236,139) #FFEC8B
LightGoldenrod3 rgb(205,190,112) #CDBE70
LightGoldenrod2 rgb(238,220,130) #EEDC82
cornsilk3 rgb(205,200,177) #CDC8B1
cornsilk2 rgb(238,232,205) #EEE8CD
cornsilk rgb(255,248,220) #FFF8DC
cornsilk1 rgb(255,248,220) #FFF8DC
goldenrod rgb(218,165,32) #DAA520
goldenrod1 rgb(255,193,37) #FFC125
goldenrod2 rgb(238,180,34) #EEB422
goldenrod3 rgb(205,155,29) #CD9B1D
goldenrod4 rgb(139,105,20) #8B6914
DarkGoldenrod rgb(184,134,11) #B8860B
DarkGoldenrod1 rgb(255,185,15) #FFB90F
DarkGoldenrod2 rgb(238,173,14) #EEAD0E
DarkGoldenrod3 rgb(205,149,12) #CD950C
DarkGoldenrod4 rgb(139,101,8) #8B6508
FloralWhite rgb(255,250,240) #FFFAF0
wheat2 rgb(238,216,174) #EED8AE
OldLace rgb(253,245,230) #FDF5E6
wheat rgb(245,222,179) #F5DEB3
wheat1 rgb(255,231,186) #FFE7BA
wheat3 rgb(205,186,150) #CDBA96
orange rgb(255,165,0) #FFA500
orange1 rgb(255,165,0) #FFA500
orange2 rgb(238,154,0) #EE9A00
orange3 rgb(205,133,0) #CD8500
orange4 rgb(139,90,0) #8B5A00
wheat4 rgb(139,126,102) #8B7E66
moccasin rgb(255,228,181) #FFE4B5
PapayaWhip rgb(255,239,213) #FFEFD5
NavajoWhite3 rgb(205,179,139) #CDB38B
BlanchedAlmond rgb(255,235,205) #FFEBCD
NavajoWhite rgb(255,222,173) #FFDEAD
NavajoWhite1 rgb(255,222,173) #FFDEAD
NavajoWhite2 rgb(238,207,161) #EECFA1
NavajoWhite4 rgb(139,121,94) #8B795E
AntiqueWhite4 rgb(139,131,120) #8B8378
AntiqueWhite rgb(250,235,215) #FAEBD7
tan rgb(210,180,140) #D2B48C
bisque4 rgb(139,125,107) #8B7D6B
burlywood rgb(222,184,135) #DEB887
AntiqueWhite2 rgb(238,223,204) #EEDFCC
burlywood1 rgb(255,211,155) #FFD39B
burlywood3 rgb(205,170,125) #CDAA7D
burlywood2 rgb(238,197,145) #EEC591
AntiqueWhite1 rgb(255,239,219) #FFEFDB
burlywood4 rgb(139,115,85) #8B7355
AntiqueWhite3 rgb(205,192,176) #CDC0B0
DarkOrange rgb(255,140,0) #FF8C00
bisque2 rgb(238,213,183) #EED5B7
bisque rgb(255,228,196) #FFE4C4
bisque1 rgb(255,228,196) #FFE4C4
bisque3 rgb(205,183,158) #CDB79E
DarkOrange1 rgb(255,127,0) #FF7F00
linen rgb(250,240,230) #FAF0E6
DarkOrange2 rgb(238,118,0) #EE7600
DarkOrange3 rgb(205,102,0) #CD6600
DarkOrange4 rgb(139,69,0) #8B4500
peru rgb(205,133,63) #CD853F
tan1 rgb(255,165,79) #FFA54F
tan2 rgb(238,154,73) #EE9A49
tan3 rgb(205,133,63) #CD853F
tan4 rgb(139,90,43) #8B5A2B
PeachPuff rgb(255,218,185) #FFDAB9
PeachPuff1 rgb(255,218,185) #FFDAB9
PeachPuff4 rgb(139,119,101) #8B7765
PeachPuff2 rgb(238,203,173) #EECBAD
PeachPuff3 rgb(205,175,149) #CDAF95
SandyBrown rgb(244,164,96) #F4A460
seashell4 rgb(139,134,130) #8B8682
seashell2 rgb(238,229,222) #EEE5DE
seashell3 rgb(205,197,191) #CDC5BF
chocolate rgb(210,105,30) #D2691E
chocolate1 rgb(255,127,36) #FF7F24
chocolate2 rgb(238,118,33) #EE7621
chocolate3 rgb(205,102,29) #CD661D
chocolate4 rgb(139,69,19) #8B4513
SaddleBrown rgb(139,69,19) #8B4513
seashell rgb(255,245,238) #FFF5EE
seashell1 rgb(255,245,238) #FFF5EE
sienna4 rgb(139,71,38) #8B4726
sienna rgb(160,82,45) #A0522D
sienna1 rgb(255,130,71) #FF8247
sienna2 rgb(238,121,66) #EE7942
sienna3 rgb(205,104,57) #CD6839
LightSalmon3 rgb(205,129,98) #CD8162
LightSalmon rgb(255,160,122) #FFA07A
LightSalmon1 rgb(255,160,122) #FFA07A
LightSalmon4 rgb(139,87,66) #8B5742
LightSalmon2 rgb(238,149,114) #EE9572
coral rgb(255,127,80) #FF7F50
OrangeRed rgb(255,69,0) #FF4500
OrangeRed1 rgb(255,69,0) #FF4500
OrangeRed2 rgb(238,64,0) #EE4000
OrangeRed3 rgb(205,55,0) #CD3700
OrangeRed4 rgb(139,37,0) #8B2500
DarkSalmon rgb(233,150,122) #E9967A
salmon1 rgb(255,140,105) #FF8C69
salmon2 rgb(238,130,98) #EE8262
salmon3 rgb(205,112,84) #CD7054
salmon4 rgb(139,76,57) #8B4C39
coral1 rgb(255,114,86) #FF7256
coral2 rgb(238,106,80) #EE6A50
coral3 rgb(205,91,69) #CD5B45
coral4 rgb(139,62,47) #8B3E2F
tomato4 rgb(139,54,38) #8B3626
tomato rgb(255,99,71) #FF6347
tomato1 rgb(255,99,71) #FF6347
tomato2 rgb(238,92,66) #EE5C42
tomato3 rgb(205,79,57) #CD4F39
MistyRose4 rgb(139,125,123) #8B7D7B
MistyRose2 rgb(238,213,210) #EED5D2
MistyRose rgb(255,228,225) #FFE4E1
MistyRose1 rgb(255,228,225) #FFE4E1
salmon rgb(250,128,114) #FA8072
MistyRose3 rgb(205,183,181) #CDB7B5
white rgb(255,255,255) #FFFFFF
gray100 rgb(255,255,255) #FFFFFF
grey100 rgb(255,255,255) #FFFFFF
grey100 rgb(255,255,255) #FFFFFF
gray99 rgb(252,252,252) #FCFCFC
grey99 rgb(252,252,252) #FCFCFC
gray98 rgb(250,250,250) #FAFAFA
grey98 rgb(250,250,250) #FAFAFA
gray97 rgb(247,247,247) #F7F7F7
grey97 rgb(247,247,247) #F7F7F7
gray96 rgb(245,245,245) #F5F5F5
grey96 rgb(245,245,245) #F5F5F5
WhiteSmoke rgb(245,245,245) #F5F5F5
gray95 rgb(242,242,242) #F2F2F2
grey95 rgb(242,242,242) #F2F2F2
gray94 rgb(240,240,240) #F0F0F0
grey94 rgb(240,240,240) #F0F0F0
gray93 rgb(237,237,237) #EDEDED
grey93 rgb(237,237,237) #EDEDED
gray92 rgb(235,235,235) #EBEBEB
grey92 rgb(235,235,235) #EBEBEB
gray91 rgb(232,232,232) #E8E8E8
grey91 rgb(232,232,232) #E8E8E8
gray90 rgb(229,229,229) #E5E5E5
grey90 rgb(229,229,229) #E5E5E5
gray89 rgb(227,227,227) #E3E3E3
grey89 rgb(227,227,227) #E3E3E3
gray88 rgb(224,224,224) #E0E0E0
grey88 rgb(224,224,224) #E0E0E0
gray87 rgb(222,222,222) #DEDEDE
grey87 rgb(222,222,222) #DEDEDE
gainsboro rgb(220,220,220) #DCDCDC
gray86 rgb(219,219,219) #DBDBDB
grey86 rgb(219,219,219) #DBDBDB
gray85 rgb(217,217,217) #D9D9D9
grey85 rgb(217,217,217) #D9D9D9
gray84 rgb(214,214,214) #D6D6D6
grey84 rgb(214,214,214) #D6D6D6
gray83 rgb(212,212,212) #D4D4D4
grey83 rgb(212,212,212) #D4D4D4
LightGray rgb(211,211,211) #D3D3D3
LightGrey rgb(211,211,211) #D3D3D3
gray82 rgb(209,209,209) #D1D1D1
grey82 rgb(209,209,209) #D1D1D1
gray81 rgb(207,207,207) #CFCFCF
grey81 rgb(207,207,207) #CFCFCF
gray80 rgb(204,204,204) #CCCCCC
grey80 rgb(204,204,204) #CCCCCC
gray79 rgb(201,201,201) #C9C9C9
grey79 rgb(201,201,201) #C9C9C9
gray78 rgb(199,199,199) #C7C7C7
grey78 rgb(199,199,199) #C7C7C7
gray77 rgb(196,196,196) #C4C4C4
grey77 rgb(196,196,196) #C4C4C4
gray76 rgb(194,194,194) #C2C2C2
grey76 rgb(194,194,194) #C2C2C2
silver rgb(192,192,192) #C0C0C0
gray75 rgb(191,191,191) #BFBFBF
grey75 rgb(191,191,191) #BFBFBF
gray74 rgb(189,189,189) #BDBDBD
grey74 rgb(189,189,189) #BDBDBD
gray73 rgb(186,186,186) #BABABA
grey73 rgb(186,186,186) #BABABA
gray72 rgb(184,184,184) #B8B8B8
grey72 rgb(184,184,184) #B8B8B8
gray71 rgb(181,181,181) #B5B5B5
grey71 rgb(181,181,181) #B5B5B5
gray70 rgb(179,179,179) #B3B3B3
grey70 rgb(179,179,179) #B3B3B3
gray69 rgb(176,176,176) #B0B0B0
grey69 rgb(176,176,176) #B0B0B0
gray68 rgb(173,173,173) #ADADAD
grey68 rgb(173,173,173) #ADADAD
gray67 rgb(171,171,171) #ABABAB
grey67 rgb(171,171,171) #ABABAB
DarkGray rgb(169,169,169) #A9A9A9
DarkGrey rgb(169,169,169) #A9A9A9
gray66 rgb(168,168,168) #A8A8A8
grey66 rgb(168,168,168) #A8A8A8
gray65 rgb(166,166,166) #A6A6A6
grey65 rgb(166,166,166) #A6A6A6
gray64 rgb(163,163,163) #A3A3A3
grey64 rgb(163,163,163) #A3A3A3
gray63 rgb(161,161,161) #A1A1A1
grey63 rgb(161,161,161) #A1A1A1
gray62 rgb(158,158,158) #9E9E9E
grey62 rgb(158,158,158) #9E9E9E
gray61 rgb(156,156,156) #9C9C9C
grey61 rgb(156,156,156) #9C9C9C
gray60 rgb(153,153,153) #999999
grey60 rgb(153,153,153) #999999
gray59 rgb(150,150,150) #969696
grey59 rgb(150,150,150) #969696
gray58 rgb(148,148,148) #949494
grey58 rgb(148,148,148) #949494
gray57 rgb(145,145,145) #919191
grey57 rgb(145,145,145) #919191
gray56 rgb(143,143,143) #8F8F8F
grey56 rgb(143,143,143) #8F8F8F
gray55 rgb(140,140,140) #8C8C8C
grey55 rgb(140,140,140) #8C8C8C
gray54 rgb(138,138,138) #8A8A8A
grey54 rgb(138,138,138) #8A8A8A
gray53 rgb(135,135,135) #878787
grey53 rgb(135,135,135) #878787
gray52 rgb(133,133,133) #858585
gray51 rgb(130,130,130) #828282
fractal rgb(128,128,128) #808080
gray50 rgb(127,127,127) #7F7F7F
gray rgb(126,126,126) #7E7E7E
grey49 rgb(125,125,125) #7D7D7D
gray47 rgb(120,120,120) #787878
gray46 rgb(117,117,117) #757575
gray45 rgb(115,115,115) #737373
gray44 rgb(112,112,112) #707070
gray43 rgb(110,110,110) #6E6E6E
gray42 rgb(107,107,107) #6B6B6B
DimGrey rgb(105,105,105) #696969
gray39 rgb(99,99,99) #636363
gray38 rgb(97,97,97) #616161
gray37 rgb(94,94,94) #5E5E5E
gray36 rgb(92,92,92) #5C5C5C
gray35 rgb(89,89,89) #595959
gray34 rgb(87,87,87) #575757
gray33 rgb(84,84,84) #545454
gray32 rgb(82,82,82) #525252
gray31 rgb(79,79,79) #4F4F4F
gray30 rgb(77,77,77) #4D4D4D
gray29 rgb(74,74,74) #4A4A4A
gray28 rgb(71,71,71) #474747
gray27 rgb(69,69,69) #454545
gray26 rgb(66,66,66) #424242
gray25 rgb(64,64,64) #404040
gray24 rgb(61,61,61) #3D3D3D
gray23 rgb(59,59,59) #3B3B3B
gray22 rgb(56,56,56) #383838
gray21 rgb(54,54,54) #363636
gray20 rgb(51,51,51) #333333
gray19 rgb(48,48,48) #303030
gray18 rgb(46,46,46) #2E2E2E
gray17 rgb(43,43,43) #2B2B2B
gray16 rgb(41,41,41) #292929
gray15 rgb(38,38,38) #262626
gray14 rgb(36,36,36) #242424
gray13 rgb(33,33,33) #212121
gray12 rgb(31,31,31) #1F1F1F
gray11 rgb(28,28,28) #1C1C1C
gray10 rgb(26,26,26) #1A1A1A
gray9 rgb(23,23,23) #171717
gray8 rgb(20,20,20) #141414
gray7 rgb(18,18,18) #121212
gray6 rgb(15,15,15) #0F0F0F
gray5 rgb(13,13,13) #0D0D0D
gray4 rgb(10,10,10) #0A0A0A
gray3 rgb(8,8,8) #080808
gray2 rgb(5,5,5) #050505
gray1 rgb(3,3,3) #030303
black rgb(0,0,0) #000000
gray0 rgb(0,0,0) #000000
opaque rgb(0,0,0) #000000
none rgba(0,0,0,0.0) #00000000
transparent rgba(0,0,0,0.0) #00000000

sips (Mac)

Usage: sips [flags] inputFile [--out outputFile]

Image modification flags:

Flag Meaning
-s key value Set the value for a key (see table below for the available keys and acceptable values).
-r degreesCW Rotate an image several degrees clockwise.
-f option Flip the image using one of the following two options: horizontal or vertical.
-c pixelsH pixelsW Crop image to fit specified size. pixelsH indicates the new height in number of pixels, pixelsW indicates the new width in number of pixels.
-z pixelsH pixelsW Resample image at specified size. Image aspect ratio may be altered. pixelsH indicate the new height in number of pixels, pixelsW indicate the new width in number of pixels.
-Z pixelsWH Resample image so height and width aren't greater than specified.
--resampleWidth pixelsW Resample image to specified width. pixelsW indicate the new width in number of pixels.
--resampleHeight pixelsH Resample image to specified height. pixelsH indicate the new height in number of pixels.
-o Optimize color for sharing.
-p pixelsH pixelsW Add padding to the image. Use --padColor hexcolor to select the padding color as hexadecimal number.

If you want to modify one image to match the properties of another image (for example have one image match the height of another image), you can use the flag -g key or --getProperty key on the image that you want to match. Where key is one of the following properties:

Profile property keys Usage
dpiHeight Height in dpi (printer dots per inch).
dpiWidth Width in dpi (printer dots per inch).
pixelHeight Height in number of pixels.
pixelWidth Width in number of pixels.
format Image format. Acceptable values for this key: jpeg, tiff, png, gif, jp2, pict, bmp, qtif, psd, sgi, tga, pdf.
formatOptions Quality of the new image. Acceptable values for this key: low, normal, high, best, or some percentage.
samplesPerPixel Samples per pixel.
bitsPerSample Bits per sample.
software Software use to create the image.
description Description.
copyright Copyright.
version Version.
platform Platform where file was created.
quality Acceptable values for this key: normal, draft, best.
renderingIntent Acceptable values for this key: perceptual, relative, saturation, absolute.
creator Creator of the file.

For the examples below I will be using the following image, taken from the following article, which I published long time ago: link to article.

original

Convert AutismArticle1.png to pdf.

$ sips -s format pdf AutismArticle1.png --out AutismArticle1.pdf
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.pdf

Rotate AutismArticle1.png 45 degrees clock-wise.

$ sips -r 45 AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/test.png

Result image:

rotated1

Rotate AutismArticle1.png 45 degrees counter-clock-wise.

$ sips -r -45 AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/test2.png

Result image:

rotated2

Flip AutismArticle1.png horizontally.

$ sips -f horizontal AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/test.png

Result image:

flipped

Flip AutismArticle1.png vertically.

$ sips -f vertical AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/test.png

Result image:

flipped2

Crop AutismArticle1.png to fit a new size that be 1/4 of its original height and 1/4 of its original weight:

The first step is to obtain the current width and height using sips with the flags --getProperty pixelWidth and --getProperty pixelHeight. Then, divide the two numbers by four. And finally use sips with the -c flag to crop the file.

$ sips --getProperty pixelHeight AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
  pixelHeight: 440
$ sips --getProperty pixelWidth AutismArticle1.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
  pixelWidth: 727
$ echo "440/4" | bc -l
110.00000000000000000000
$ echo "727/4" | bc -l
181.75000000000000000000
$ sips -c 110 181 AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
  /Users/monica/Desktop/Backup/images_presentations/test.png

Result image:

cropped

Resample image to 110x181:

$ sips -z 110 181 AutismArticle1.png --out test.png
/Users/monica/Desktop/Backup/images_presentations/AutismArticle1.png
  /Users/monica/Desktop/Backup/images_presentations/test.png
$ sips --getProperty pixelHeight test.png
/Users/monica/Desktop/Backup/images_presentations/test.png
  pixelHeight: 110
$ sips --getProperty pixelWidth test.png
/Users/monica/Desktop/Backup/images_presentations/test.png
  pixelWidth: 181

Result image:

resampled
